Fretboard - Preview

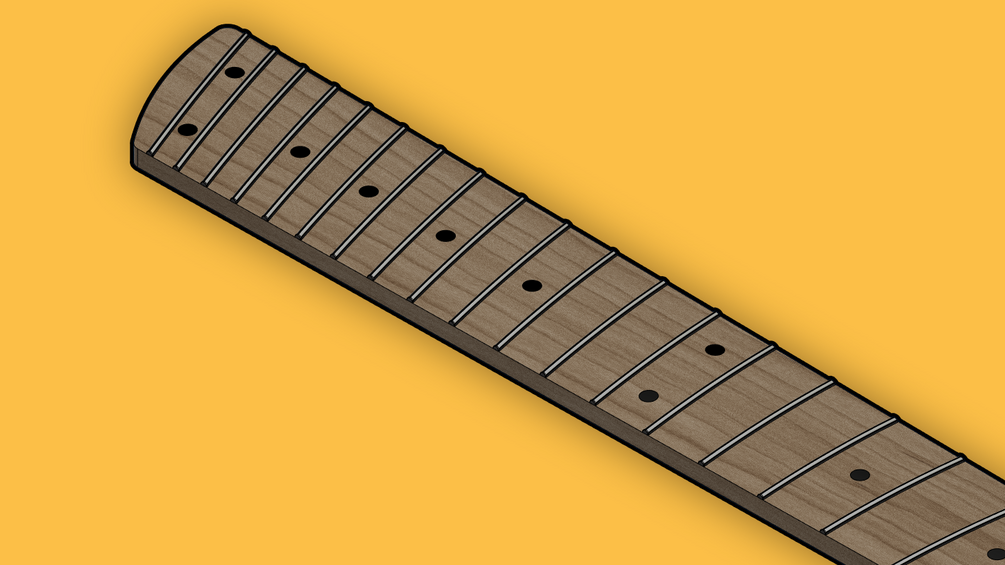

This is a fully parametric fretboard I've been building in Fusion 360.

Please leave any feedback for any issues you've found.

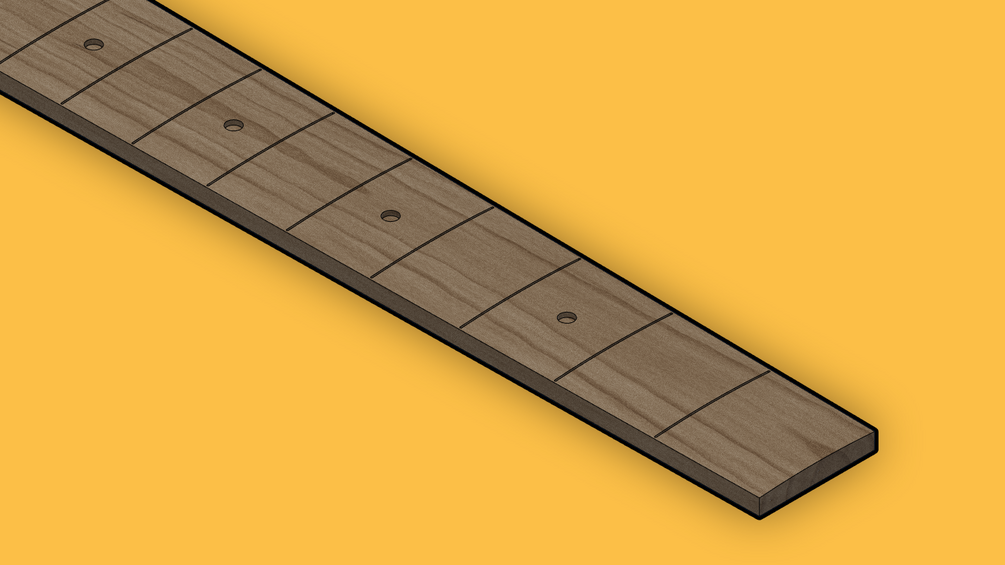

The timeline groups can be suppressed and unsuppressed to access different details.

The design can be modified through the Change Parameters window under the Modify dropdown.

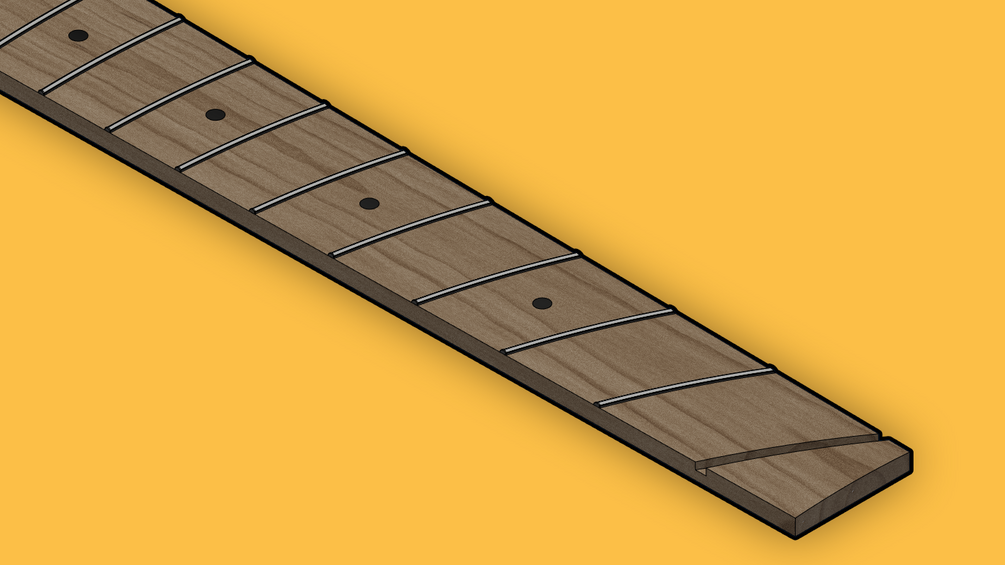

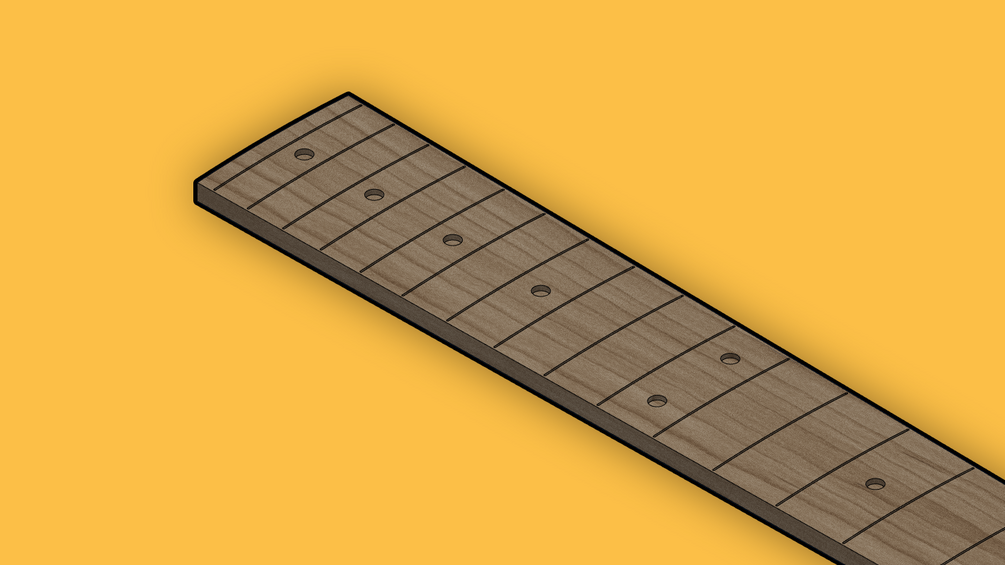

⚠️It recalculates slower when more groups are unsuppressed, so I recommend suppressing the Fret Wire group when changing parameters. I highly suggest not having both Fret Slots and Fret Wire timeline groups unsuppressed at the same time.⚠️

Please use the link below to follow to my corresponding post. Here is where you can learn more about the fretboard as well as leave feedback or comment! 🤗

Thanks!
